Audio Science 5740 Audio Card

Audio Science 5740 Audio Card

$1,695.00

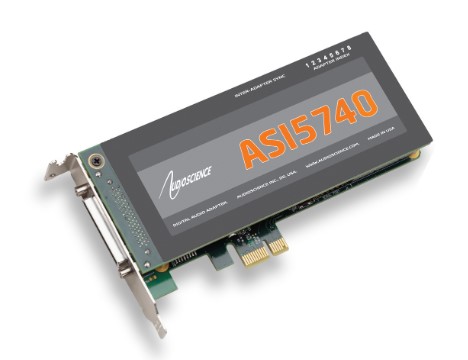

The ASI5740, is a professional Low Profile PCI-Express sound card designed for use in the installed sound, entertainment and broadcast markets.   Providing up to 12 play streams that are mixed to 4 balanced stereo outputs and 8 record streams fed from four balanced stereo inputs, the ASI574x series features AudioScience’s unique “anything to anywhere” mixing and routing. Price includes ground shipping to the lower 48 states.

Category:

Description

Features
  • 4 or 12 stereo/mono streams of playback into 4 stereo outputs
  • 4 or 8 stereo/mono streams of record from 4 stereo inputs
  • Formats include 8,16,24 and 32 bit PCM with sample rates to 96kHz
  • Balanced stereo analog I/O with levels to +24dBu (ASI5740 and ASI5744 only)
  • 24bit ADC and DAC with 110dB DNR and 0.0015% THD+N
  • Low profile short length PCI(e) card format (6.6 inches/168mm)
  • Up to 8 cards in one system
  • Windows and Linux software drivers available
  • Available operating modes

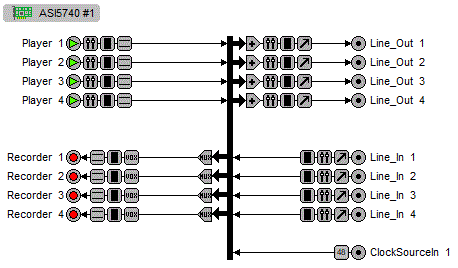

    ASI5740 4 Play mode
    Documentation Downloads
    ASI574x Datasheet Windows Drivers
    Cable options Linux HPI and ALSA Drivers
