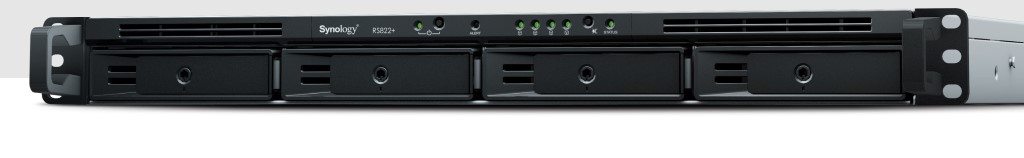

Synology RS822RP+

Synology RS822RP+

$2,299.00 – $3,499.00

1U rackmountable. The 4-bay Synology RackStation RS822RP+ with redundant PSU, provides for central storage, file sharing, synchronization, VPN remote access and backup needs. Up to 2103/1074 MB/s sequential read/write, Built-in quad 1GbE ports, ECC memory. Price includes setup by WireReady, and arrives ready for use. Includes free shipping.

SKU: HW-SYN-RS822RP+ Category:

Description

Includes redundant (not hot swappable) power supplies. Also supports stackable expansion or high availability clustering (with RX418 expansion unit and a second RS822RP+ sold separately).

rdware Specifications
RS822RP+
CPU CPU Model AMD Ryzen V1500B
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.2 GHz
Hardware Encryption Engine
Memory System Memory 2 GB DDR4 ECC SODIMM
Memory Module Pre-installed 2 GB (2 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage Drive Bays 4
Maximum Drive Bays with Expansion Unit 8 (RX418 x 1)
Drive Type (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD



Hot Swappable Drive*
Notes The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports RJ-45 1GbE LAN Port 4
USB 3.2 Gen 1 Port* 2
Expansion Port 1
Expansion Port Type eSATA
Notes
  • This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Appearance Form Factor (RU) 1U
Size (Height x Width x Depth) 44 mm x 480 mm x 518.6 mm
Weight 8.0 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02)
Notes The rail kit is sold separately
Others System Fan 40 mm x 40 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* 38.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 150 watts
Redundant Power Supply –
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 47.69 watts (Access)
16.7 watts (HDD Hibernation)
British Thermal Unit 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
  • UL
Warranty 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • Extended Warranty Plus is only available in Europe and North America. Refer to the Extended Warranty Plus website for details on supported countries/regions. (Learn more)
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1

Additional information

Weight N/A
Configuration

8 TB Mirrored+HS, 16 TB Mirrored+HS, 24 TB Mirrored+HS, 8TB RAID5+HS, 16TB RAID5+HS, 32TB RAID5+HS
